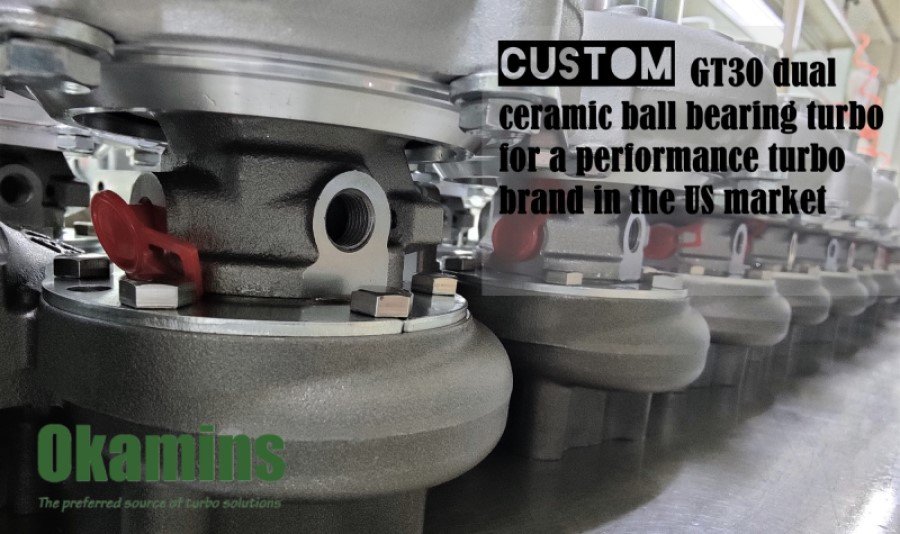

Per this performance turbo customer’s requirements, and based on our knowledge, experience, and years of understandings, we custom make a batch of 100 pcs GT30 dual ceramic ball bearing turbos, which were exported into US market for sale.
The customizations and others are:
Compressor side:
● Customer pay a half cost of the whole compressor housing casting die/mould, so as to cast a customer’s LOGO on the surface of the housings, MOQ 100 pcs
● Add anti-surge to the compressor housing bore, with anti-surge slots to be in line with compressor wheel’s splitter blades
● Machine compressor housing bore and R section(contour profile) to meet with larger compressor wheel
● Make and custom anodizing special color of the larger compressor wheel
Turbine side:
● Using our existing high A/R high flow turbine housing, no die/mould required.
● Porting the internal exhaust opening/hole (20% larger than the OE/STD) in the turbine housing (bypass, discharge hole), avoiding or eliminating boost creep.
**Boost creep is a condition of rising boost levels past what the predetermined level has been set at. Boost creep is caused by a fully opened Wastegate(s) not being able to flow enough exhaust to bypass the housing via the Wastegate(s) itself.
● Customize special wastegate flapper to suit the internal larger exhaust opening/hole (the OE/stock one will be stuck at the opening/hole, not good, so we customize it to suit)
● Special wastegate actuator connector, to suit customer’s special billet actuator
● Machine turbine housing bore and contour profile to meet with high flow 9 blades turbine wheel
● The high flow 9 blades turbine wheel was made with the right shaft spec. to meet with our own ball bearing system
Ball bearing system:
● Using our widely used / highly exported performance dual ceramic ball bearing system
● Well balanced on VSR
Welcome to contact us to discuss your performance turbo ideas and needs, our years of experience can help with you.
Please let us know how we can help you.
